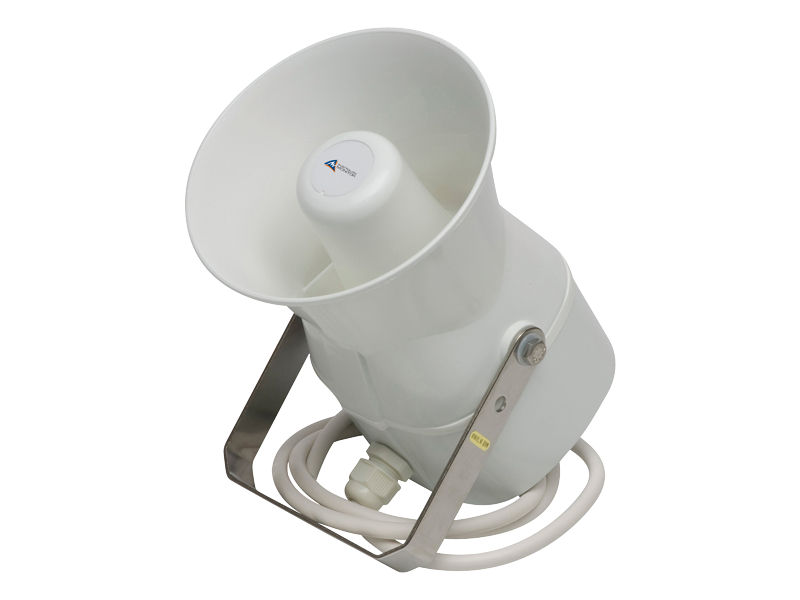

MPH5300

Horn
30W, IP66 Rated

Designed to deliver a high level of clarity from a rugged horn speaker, the MPH5300 will operate in adverse temperatures and weather environments.

Quantity must be 1 or more

  • • Temperature range -30oC to +55oC
    • 30 watts power rating RMS
    • Power taps 30, 15, 7.5W
    • Frequency response 500 Hz – 7 kHz
    • 107dB SPL (1w/1m)
    • ABS construction
    • IP66 Rated
    • 100 degree dispersion
    • 13cm bell, 16cm height
    • 3.5kg

  • Form Factor Horn Max Continuous Power 30W
    Tappings 30W-15W-7.5W Max Program Power Unspecified
    IP Rating IP66 Max Peak Power Unspecified
    EASE Model Yes SPL 1W/1m 107dB
    Powered Passive Max SPL RMS 122dB
    Driver Diameter N/A Max SPL Peak Unspecified
    Colour White Frequency Response (-3dB) 500Hz-7kHz
    Warranty 5 years Dispersion 100deg
    Product Dimensions
    (W x D x H)    		 Shipping Dimensions
    (W x D x H)
    Net Weight 3.5 Kg Shipping Weight
    GTIN EAN 9323383011076

  • MPH5300 Cable Wiring

    MPH5300 EASE Model

  • Speaker SPL and Power Calculator
