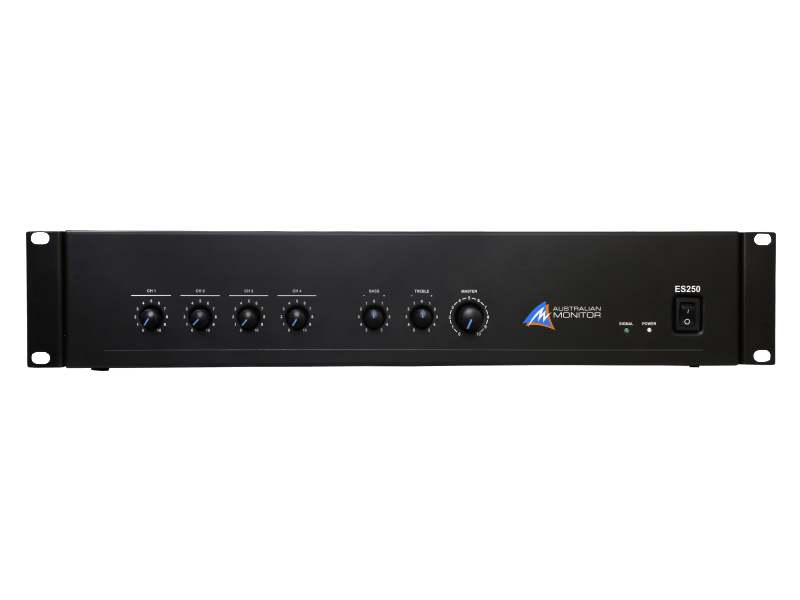

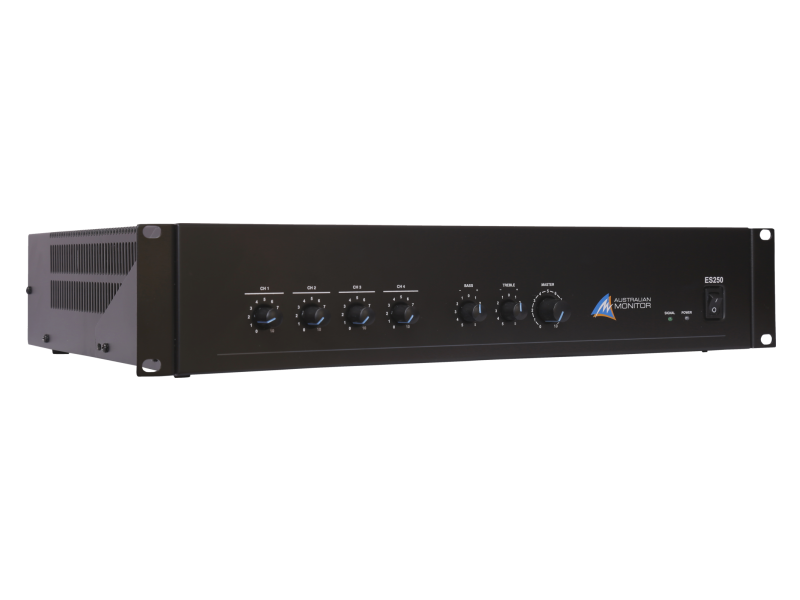

ES250
250W Mixer Amplifier
Cost Effective, Basic Features
Cost Effective, Basic Features
The Australian Monitor ES Series is the latest evolution of our Essentials series of Mixer Amplifiers, now featuring 2 channels of priority VOX muting, integrated tone generator (120/250 models) and a modern look and finish.
The ES mixer amplifiers maintain the core features you expect including four XLR mic/dual RCA line inputs, record and line outputs, low impedance or constant voltage outputs and 12V phantom power.
The ES series offers the latest features to meet projects requiring the most cost-effective solutions.
-
• 250 Watt mixer amplifier
• 4 XLR microphone/dual RCA line inputs
• 100 volt or 4 ohm output
• Line and Record Level Outputs
• Input 1,2 vox muting priority
• Integrated tone generator. Evac/Alert/Intruder/Bell/Chime tones
• 12VDC phantom power
• 2 RU rack mountable chassis
Power Amplifier Stage

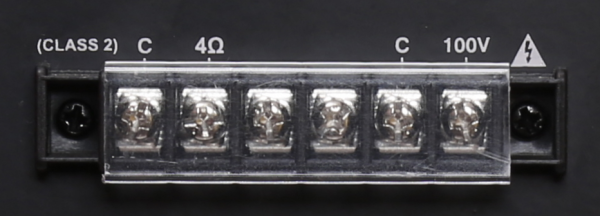

The ES mixer amplifiers all offer 100V and 4Ω output options so you can choose the required output for your speaker application.4 Input Channels

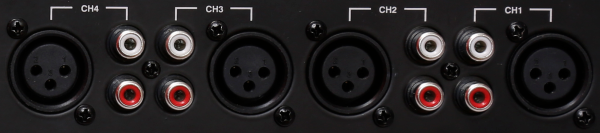

The ESMIX and Mixer Amplifiers all feature four inputs channels.
Each channel can be used as a Microphone input(XLR) or as a Line Level Input(RCA).Line and Record Outputs
The ESMIX and ES Mixer Amplifiers feature both a Line and Record Output.
These outputs can be used to link additional power amplifiers to increase the required output channels or total power requirements.
Priority Muting & Phantom Power
The ES series offer two channels of priority muting control.

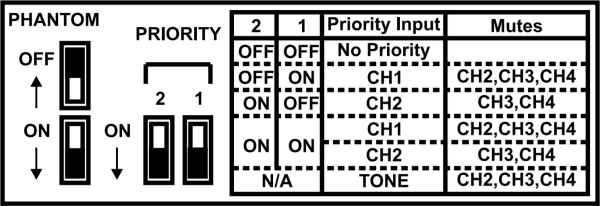

Using selectable DIP switches on the rear of the product, different configuration modes can be selected as shown in the table.
Use the priority muting to perform talk over functions which mute background music inputs when audio is detected on a priority input channel.
Phantom power is also provided which, when activated, provides 12 volts to condenser microphones on the XLR inputs.

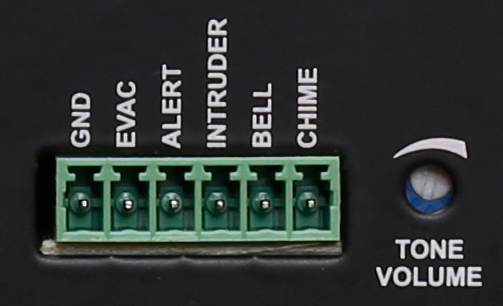

Embedded Tone Generator
The ES120, ES250 and ESMIX products embed a tone generator which can play 5 internal tones.

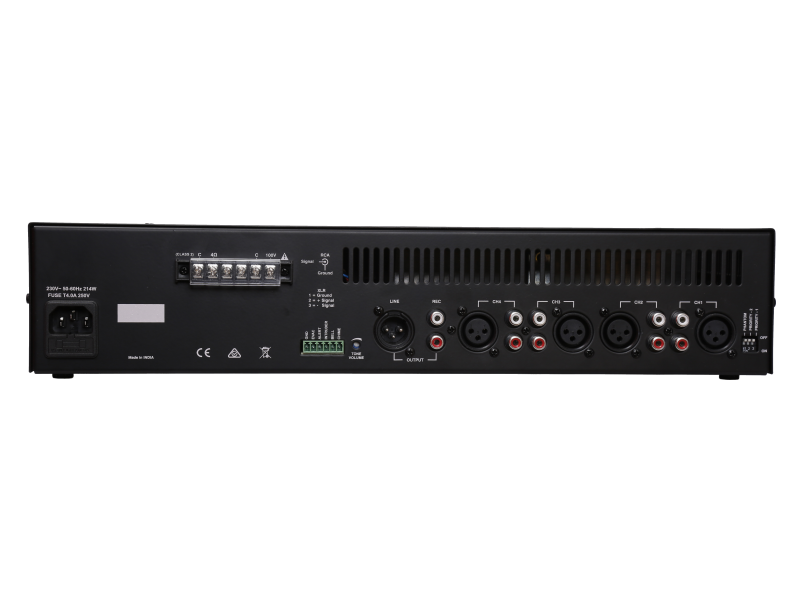

A rear panel connector allows the tones to be played by connecting any of the pins to the ground terminal.
A tone volume control is also provided to change the tone to the desired level.
When a tone is playing Channels 2, 3 and 4 are muted. Channel 1 is not muted to allow, if required, microphone messaging over the tone.
-
Output Power per Channel 250W Frequency Response 40Hz - 20kHz Output Mode 4 Ohm-100V THD+N < 0.3% Input Channels 4 MIC or Line Signal to Noise Ratio > 80dB Input Voltage 230Vac 50Hz Input Sensitivity MIC: 1.2mV - Line: 160mV Mounting 2RU Cooling Fan-assisted Warranty 5 years Product Dimensions
(W x D x H)483mm x 365mm x 88mm Shipping Dimensions
(W x D x H)545mm x 460mm x 160mm Net Weight 11.8 Kg Shipping Weight 12.7 Kg GTIN EAN 9323383020061 -
-
