PICOBLUv2
30W Mixer Amplifier
Small Form Factor, Bluetooth
Small Form Factor, Bluetooth
The Australian Monitor PICOBLU®v2 is our second generation small form factor 30W Mixer Amplifier specifically designed for small space applications such as cafes, restaurants, small retail and classrooms.
The PICOBLU®v2 now includes an upgraded and programmable Bluetooth v5.1 module allowing customisation of the broadcast name, PIN number and various security features.
The system still maintains 3 input channels, including microphone, Bluetooth® and 3.5mm input jack options and an integrated 30W power amplifier with 4Ω and 100V output modes.
Capable of standalone, rack or under desk mounting, using optional kits, the PICOBLU®v2 can fit any application space with ease.
-
• 30W mixer amplifier
• 100 volt or 4 ohm output
• 3 Channel Mixer. Input 1 - MIC/Line, Input 2 - 3.5mm/Line, Input 3 - Bluetooth/Line
• Programmable Bluetooth name, PIN and security features via Bluetooth PC Control Software
• USB-C programming connector
• 3.5mm TRS jack line input
• External mute contact closure
• Small form factor
• Rack or desk mounting kits options. PICO-RMK and PICO-DMK.
Small Form Factor
The PICOBLU® is a small form factor mixer amplifier designed to fit in tight spaces or to be concealed under tables or fitted on walls.

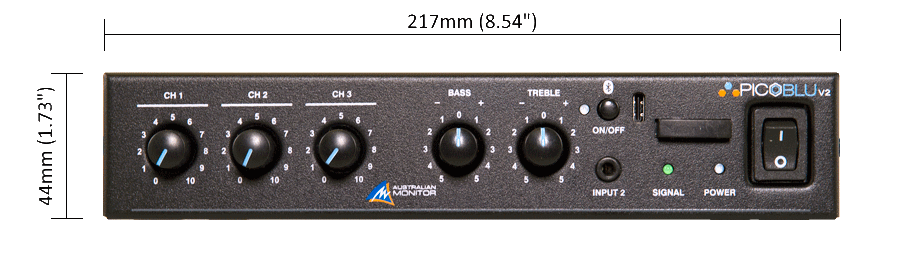

Measuring just 217mm wide, 44mm high and 287mm depth the PICOBLU® can go where it is needed.

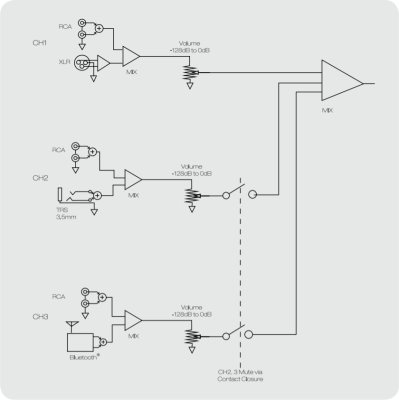

3 Channel Mixer - 6 Input Sources
The PICOBLU® is a 3 channel mixer but features the flexibility to use up to 6 different input standards.
Mixer Input 1 can be either a microphone input using the rear XLR input or a line level input using the rear RCA inputs.
Mixer Input 2 can be either a rear RCA line level input or a front panel 3.5mm input jack.
Mixer Input 3 can be a rear line level input or a Bluetooth® audio input.
BLUETOOTH CONTROL SOFTWARE
The WPBT can be optionally programmed via the free Bluetooth PC Control Software. The following settings can be modified,
• Bluetooth broadcast name
• Bluetooth PIN
• Security features
• Allow phone call support
• Audio output mode

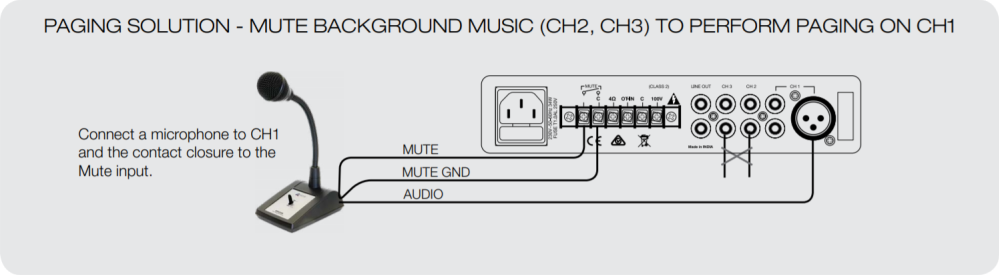

Mute Contact Closure

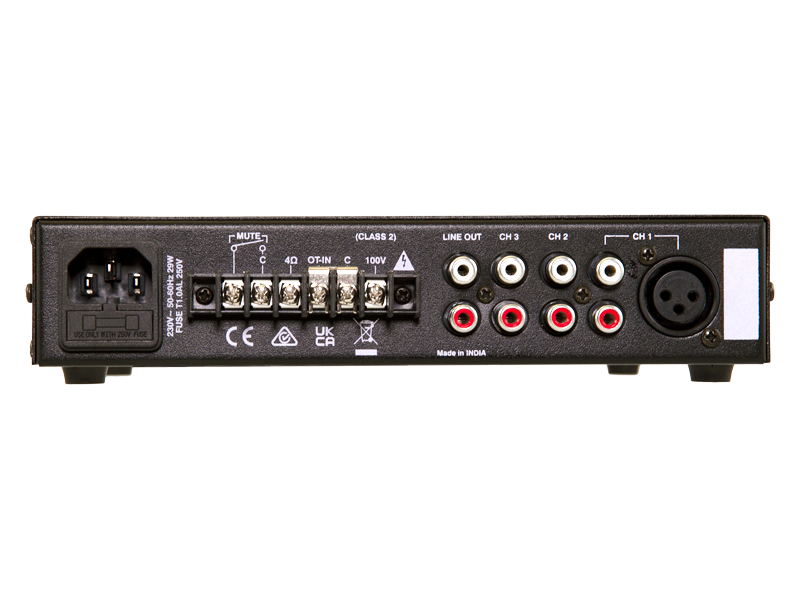

The PICOBLU® features a rear screw terminal contact closure input.
Simply connect to a paging station/fire panel or other control device to mute input 2 and 3 to make paging or emergency announcements.
Racking Options
-
Output Power per Channel 30W Frequency Response 104Hz - 20kHz Output Mode 4 Ohm-100V THD+N < 0.2% Input Channels 1 MIC/Line and 2 Line Signal to Noise Ratio > 85dB Input Voltage 230Vac 50Hz Input Sensitivity MIC: 3mV - Line: 405mV Mounting 1RU Cooling Fan-assisted Warranty 5 years Product Dimensions
(W x D x H)217mm x 287mm x 44mm Shipping Dimensions
(W x D x H)315mm x 365mm x 105mm Net Weight 3.75 Kg Shipping Weight 4.7 Kg GTIN EAN 9323383020283 -
-
-
The default PIN number is 2626 but can be changed using the Bluetooth Control SoftwareYes.
Use the Bluetooth Control Software to program the Bluetooth module with the required name.The Bluetooth 5.1 range is up to 200m.(Direct line of site) Walls and obstacles will reduce this distance.Check that the MUTE contact closure is not active.
