HS4120P
4 x 120W Power Amplifier
USB/RS232 Control w mini DSP
USB/RS232 Control w mini DSP
The HSP series is Australian Monitor's next generation of controllable Class D power amplifiers, delivering high quality audio reinforcement with the power you need in the following options -Single channel 120W or 250W, Dual channel 120W or 250W and Quad channel 120W or 250W.
Our new power amplifiers are fully featured, including an efficient Class D amplifier, USB and RS232 control and a mini DSP featuring volume control, mute, compressor/limiter, filter and input channel selection.
The HSP series power amplifiers give the AV contractor a reliable amplifier for applications that are price sensitive yet still require high quality commercial sound reinforcement and control.
-
• 4 x 120W power amplifier
• 4 ohm, 70V and 100V output options
• Class D topology
• Programmable via PC UI application
• USB and RS232 control
• Mini DSP - Volume controls, input / output routing, high and low pass filtering, compressor / limiter, pink noise / sine wave generator, muting and inversion
• Mute control via contact

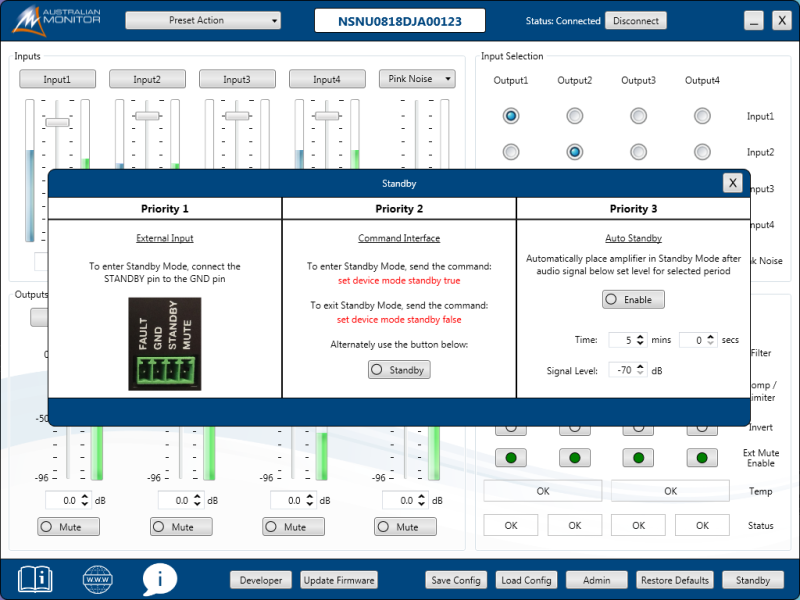

• Standby control via contact
• Fault status via contact
Class-D Amplifier
The HSP amplifiers use an efficient Class-D amplifier topology allowing a greater power density with a much lower weight.
All amplifier channels offer 100V, 70V and 4Ω output options so you can choose the output configuration to match your application.PC Control Application

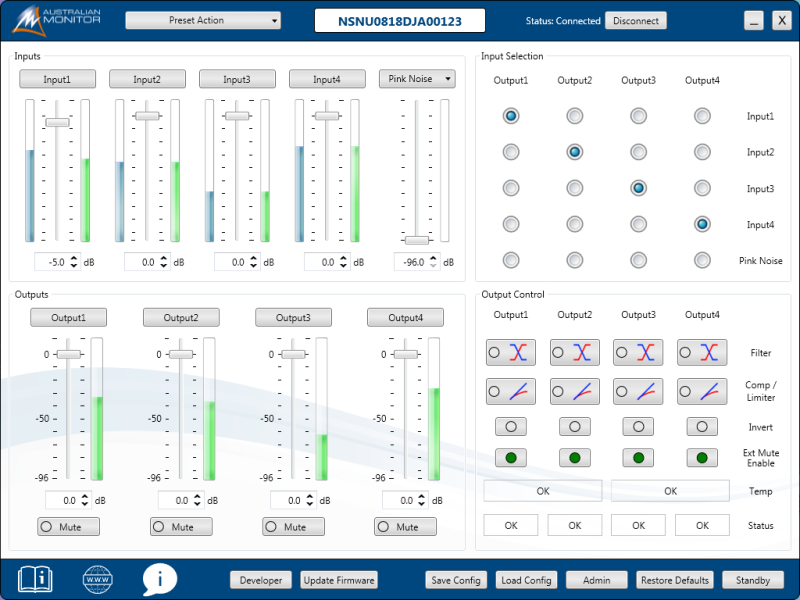

Take control of your amplifier using the HSP Control Software.
The control software allows you to modify signal routing, DSP settings, channel naming, retrieve status information and more.
Download it now from the download section of this page and see what the HSP amplfier can do.
Integrated mini DSP
The HSP amplifiers include a mini DSP engine with the following features,
• Input/Output Router

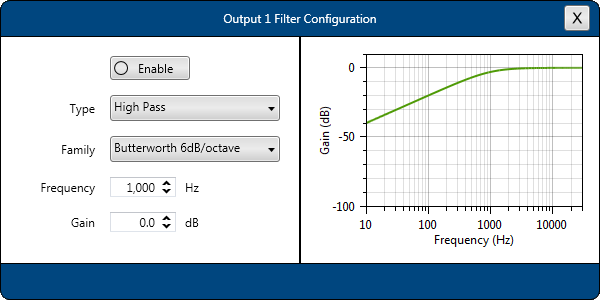

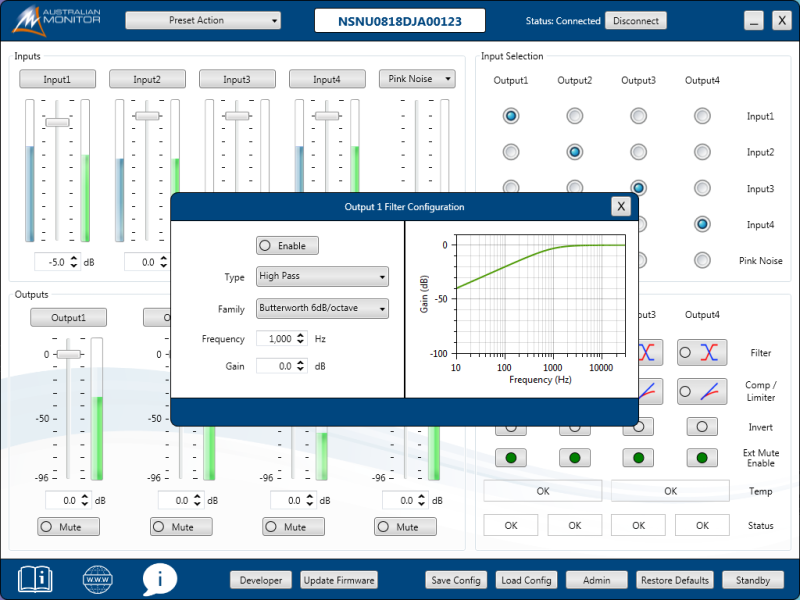

• High, Low Pass Filters

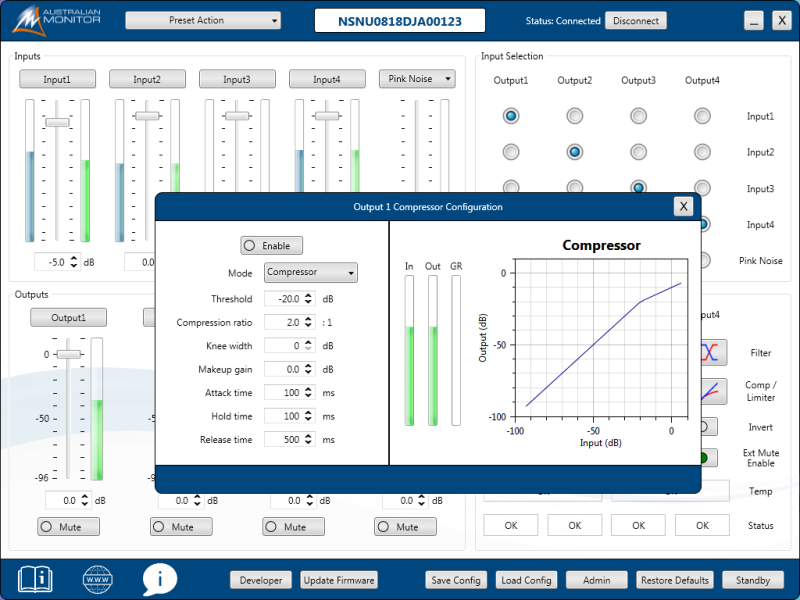

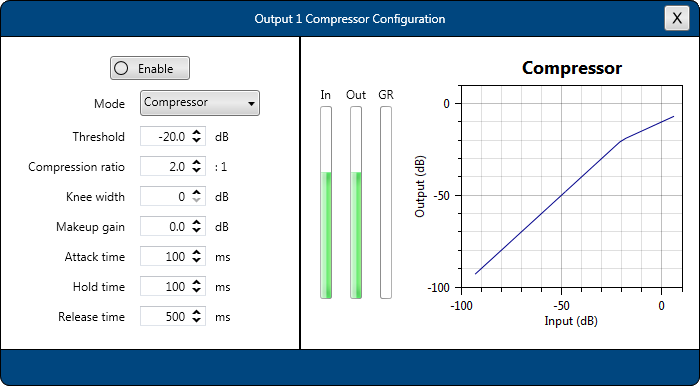

• Compressor / limiter
• Mute
• Inversion
3rd Party Control
Take further control of the HSP amplifiers with 3rd party system support over USB or RS232.

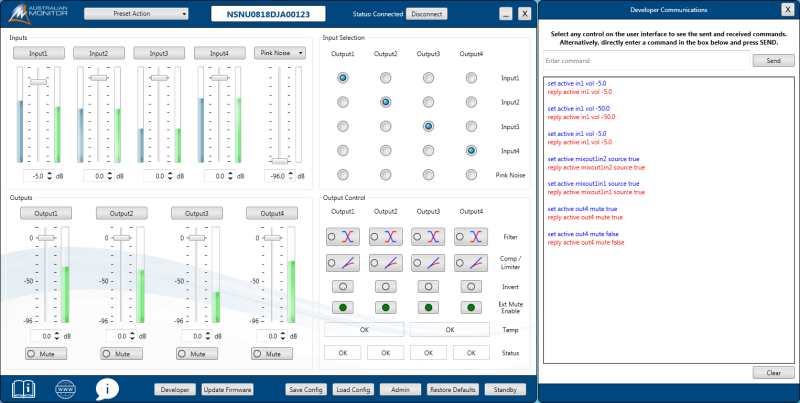

Enter "Developer Mode" in the PC application to easily see the commands being sent and received from the amplifier.
The HSP control protocol can be found in the manual.
-
Output Power per Channel 120W Frequency Response 100Hz - 16kHz Output Channels 4 THD+N < 0.2% (-3dB) Output Mode 4 Ohm-70V-100V Signal to Noise Ratio > 92dB Input Voltage 100-240Vac 50-60Hz Input Sensitivity 1Vrms Mounting 2RU Cooling Fan-assisted Warranty 5 years Product Dimensions
(W x D x H)483mm x 389mm x 89mm Shipping Dimensions
(W x D x H)546mm x 491mm x 197mm Net Weight 14.0 Kg Shipping Weight 15.6 Kg GTIN EAN 9323383019942 -
-
-
The protocol is described in the rear of the manualBaud 115200, Data 8, Stop 1, Parity None, Flow NoneBlue On = Normal Operation
Blue Slow Flash = Standby Mode (On for 50ms, Off for 4s) Blue Flashing = Error Mode (LED Off for 2s followed by a flash count of the error code). Refer to the Fault Finding section of this manual to fix any errors displayed.Yellow Flashing = Amplifier temperature warm
Yellow On = Amplifier temperature hot
Red Flashing = Amplifier over temperature
Red On = Amplifier protect
