TRUEBLU

Bluetooth® Audio Receiver

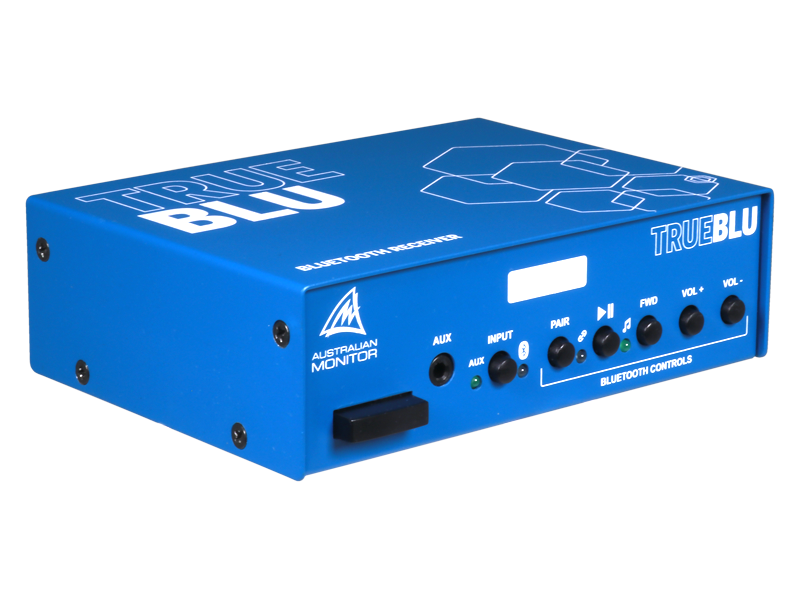

The TRUEBLU is a programmable Bluetooth® audio receiver and auxiliary input audio source. Featuring Bluetooth pairing and front panel media controls as well as a source selector. Audio can be configured to output either stereo or mono balanced and unbalanced audio which can be integrated into any audio system.

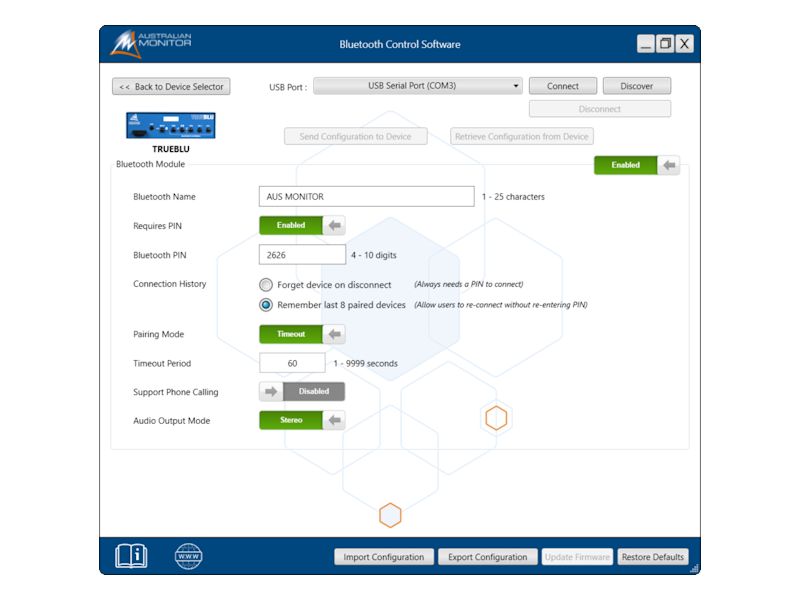

The TRUEBLU can be programmed via a USB-C connector and Bluetooth PC Control Software. The software allows the customisation of broadcast name, PIN number, security features and output mode.

Additionally, RS232 control allows the TRUEBLU to be remotely controlled allowing integration into Unified communication applications. For example, Name and PIN can be modified to reflect meeting room booking information.

Features
Specifications
Downloads
FAQs

• Bluetooth® v5.1 Audio Receiver
• Auxiliary 3.5mm Input Socket
• Programmable name, PIN and security features via Bluetooth PC Control Software
• USB-C programming connector

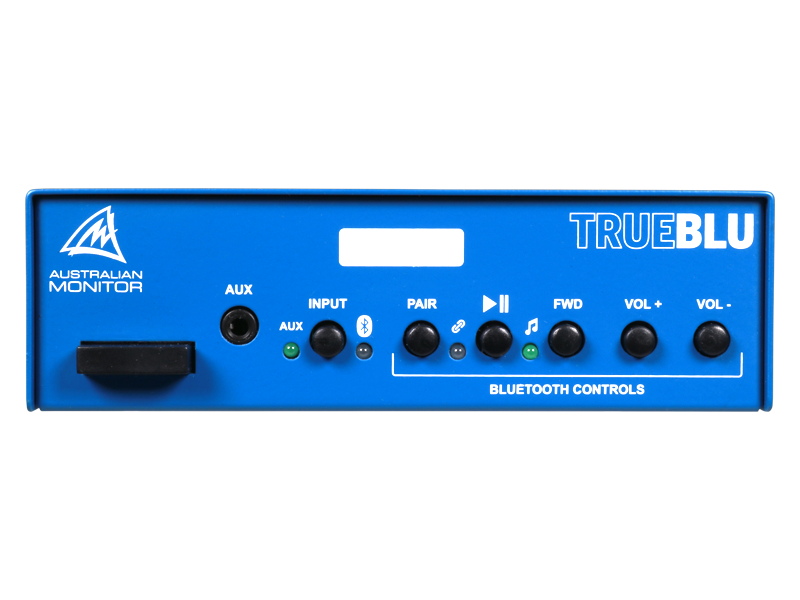

• Dedicated front panel Bluetooth® media controls
• Stereo or mono output mode

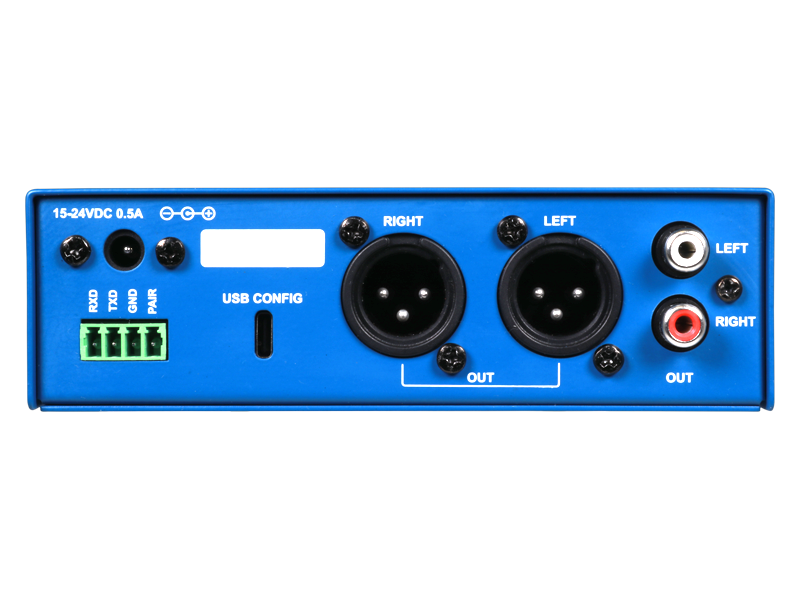

• XLR and RCA audio outputs

Output Channels	Stereo or Mono	Frequency Response	N/A
Audio Formats	Un/Balanced Audio	THD+N	< 0.1%
Input Voltage	15-24Vdc	Signal to Noise Ratio	> 80dBA
Mounting	Desk	FM Frequencies	N/A
Warranty	5 years	DAB+ Frequencies	N/A

Product Dimensions (W x D x H)	246mm x 126mm x 62mm	Shipping Dimensions (W x D x H)	144mm x 115mm x 43mm
Net Weight	480 grams	Shipping Weight	0.8 Kg
		GTIN EAN	9323383021044

TRUEBLU Brochure

TRUEBLU Manual

Bluetooth Control Software
200 metres direct line of site. Walls and obstacles will reduce this distance.

The RS232 protocol and command set and published in the product manual. Consult the 'serial command protocol' section for further information.
