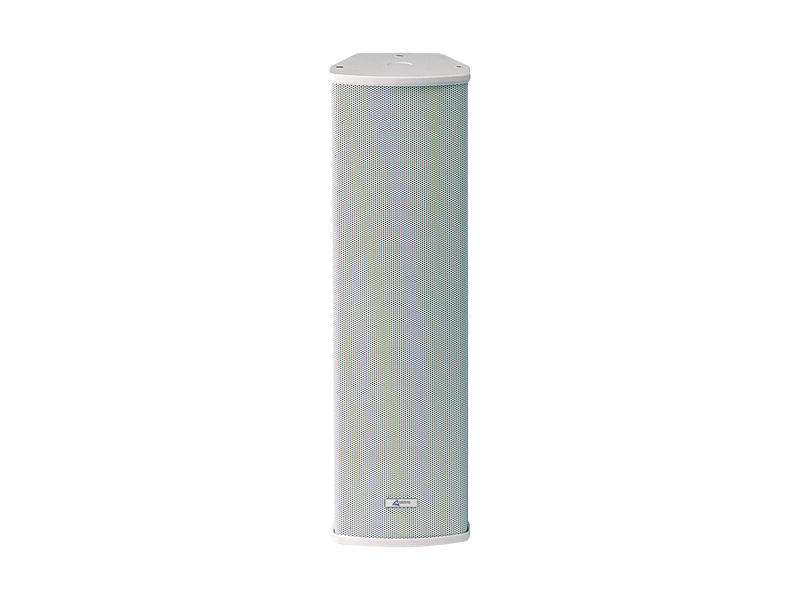

CS210

Column Loudspeaker
10W, IP66 Rated

The CS210 is a specialised IP66 Rated Weatherproof Column Speaker that combines 2 x 3.5” woofers with a 3.25” tweeter for excellent speech reproduction.

With a subtle design and supplied with a mounting bracket the CS210 is an excellent vocal re-enforcement speaker for indoors or outdoors.

Quantity must be 1 or more

  • • Includes two 3.5” speakers and a 3.25” tweeter
    • Smooth response, excellent intelligibility
    • Dispersion.H:180˚ x V:75˚(@1Khz), H:100˚ x V:30˚(@4Khz)
    • Tappings 10, 5, 2.5, 1.25W @ 100V
    • IP66 Rated
    • Flexible swivel bracket included

  • Form Factor Column Max Continuous Power 10W
    Tappings 10W-5W-2.5W-1.25W Max Program Power 20W
    IP Rating IP66 Max Peak Power 40W
    EASE Model Yes SPL 1W/1m 92dB
    Powered Passive Max SPL RMS 102dB
    Driver Diameter 3.5" x 2 & 3.25" Max SPL Peak 108dB
    Colour White (RAL 9003) Frequency Response (-3dB) 130Hz - 20kHz
    Warranty 5 years Dispersion 180 x 75deg
    Product Dimensions
    (W x D x H)    		 395mm x 114mm x 96mm Shipping Dimensions
    (W x D x H)
    Net Weight 2.8 Kg Shipping Weight
    GTIN EAN 9323383012103

  • CS210 Brochure

    CS210 Bracket Brochure

    CS210 Wiring Diagram

    CS210 Frequency and Polar Plots

    CS210 EASE Model

  • Speaker SPL and Power Calculator
