DIGIPAGE JUNIOR - Discontinued

Zone paging and BGM system
8 mono zone outputs

Suggested Alternatives - ZONEMIX8

The DigiPage Junior starts as an 8 zone paging system and can be expanded to 16 zones.

The DigiPage Junior is packed with excellent features and is a very cost effective solution for those applications who have neither the budget or the need for the more elaborate features of the DigiPage.

Quantity must be 1 or more

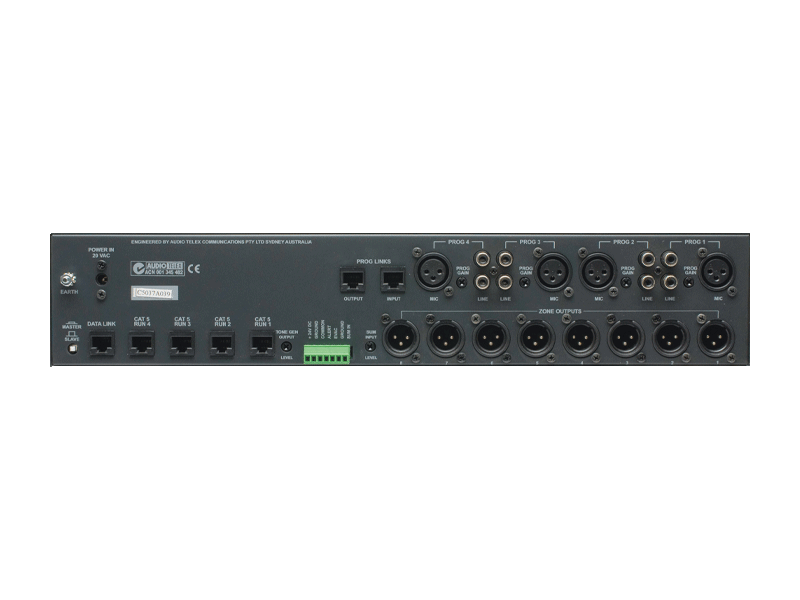

  • • 4 balanced mic/ Dual RCA line inputs
    • 8 Zone outputs (expandable to 16 zone outputs)
    • Capacity for up to 16 remote paging microphones. (Can be increased using remote power supplies)
    • Emergency input
    • 4 CAT5 ports which are used to connect to remote zone paging microphones
    • Alert, Evacuation and Pre Announce Chimes
    • Priority Ducking Circuitry

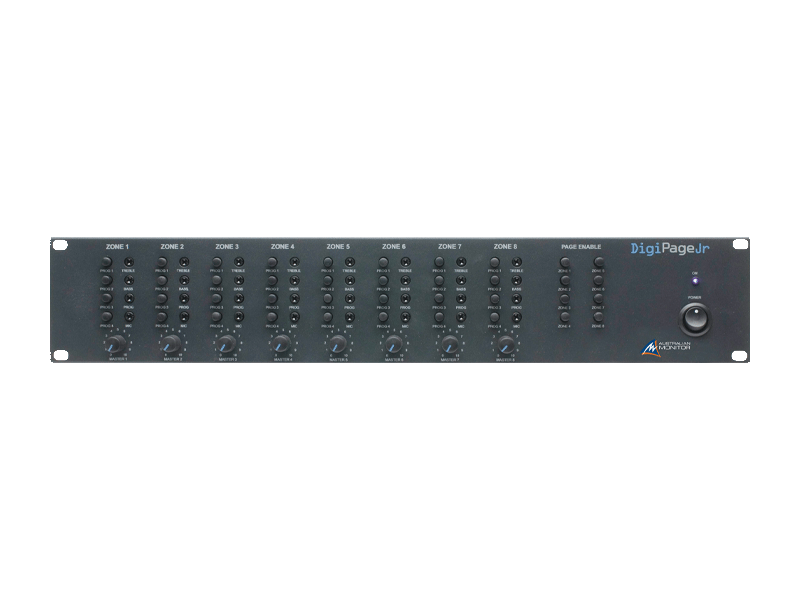

    • Easy front panel input selection
    • Page ‘Enable’ per zone allows users to remove the ability to page into certain zones in case that zone does not want to be interrupted. This is generally due to a conference or seminar being held in that zone
    • One paging microphone can be set to have ultimate priority over other paging microphones


  • ​ DPJR8M - Discontinued
     Paging Microphone
    8 zone control
    ​ DPJR16M - Discontinued
     Paging Microphone
    16 zone control

  • DIGIPAGE JUNIOR Brochure

    DIGIPAGE JUNIOR Manual

    DIGIPAGE Paging Extension Application Note

  • Yes.
    Using the Digipage SUM IN input you can take an audio signal from the Fire panel, or other source, which ducks all Digipage inputs effectively muting them.
    If required, you can also attenuate the SUM IN audio down to zero if you wish to pass no audio but still mute the system.
