ES480P
4 x 80W Power Amplifier
Cost Effective, Basic Features
Cost Effective, Basic Features
The ES480P power amplifier delivers 80 watts per channel at 100 volt or 4 ohm in a 2 RU package.
The ES series booster amplifiers give the audio contractor a reliable, low cost booster amplifier for applications that are price sensitive but still require high quality commercial sound reinforcement.
-
• 4 x 80W amplifier
• 4 ohm and 100 volt output options
• Rear panel volume control
• Balanced input and thru out
• Fan cooled
• 2 RU
Power Amplifier
The ES amplifiers all feature a rugged power amplifier with short-circuit, over-load, and thermal protection.
Build for reliable, long term performance at a great price point.Power Amplifier Output Mode
The ES power amplifiers all offer 100V and 4Ω output options so you can choose the required output for your speaker application.

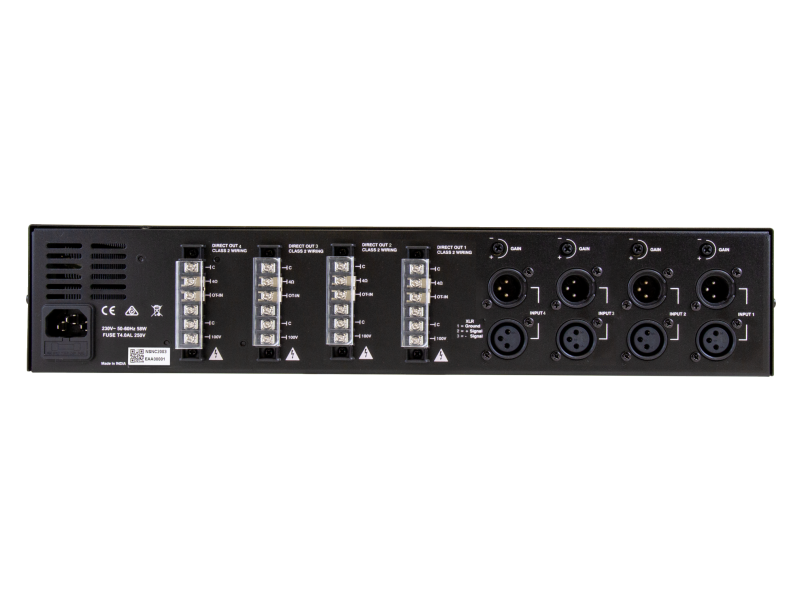

XLR Input and Through Output
The ES power amplifiers feature a female XLR input as well as a male XLR through output.
This allows easy cable daisy chaining of multiple amplifiers from a single audio source without cable splitting.
An input level attenuator is also provided to trim the input audio signal to the desired level for the amplifier.
-
Output Power per Channel 80W Frequency Response 100Hz - 20kHz Output Channels 4 THD+N < 0.2% (-3dB) Output Mode 4 Ohm-100V Signal to Noise Ratio > 84dB Input Voltage 230Vac 50-60Hz Input Sensitivity 150mVrms Mounting 2RU Cooling Fan-assisted Warranty 5 years Product Dimensions
(W x D x H)483mm x 353mm x 88mm Shipping Dimensions
(W x D x H)556mm x 471mm x 171mm Net Weight 9.2 Kg Shipping Weight 10.5 Kg GTIN EAN 9323383020115 -
