WP-BREAKOUT
Wall Panel Breakout
Power and Audio
Power and Audio

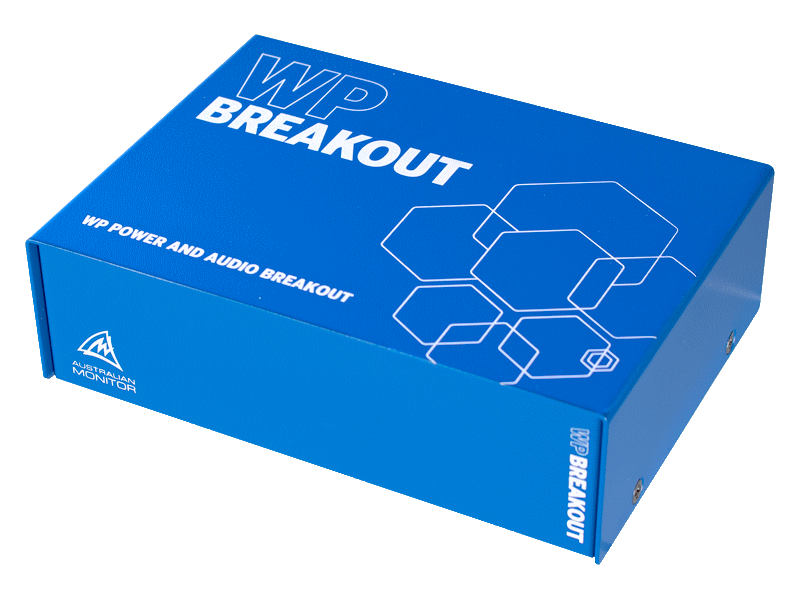

The WP-BREAKOUT is an accessory box to easily provide power and break out the audio from up to two audio wall panels.
24V is provided to the wall panels and the wall panel balanced audio is converted into unbalanced audio for connection into any audio system.
Multiple WP-BREAKOUT units can be daisy chained from one power supply for a minimal installation footprint.
-
• Supports the WPBT and WPML Wall Panels
• Provides 24V power to wall panels
• Converts wall panel balanced audio to unbalanced audio

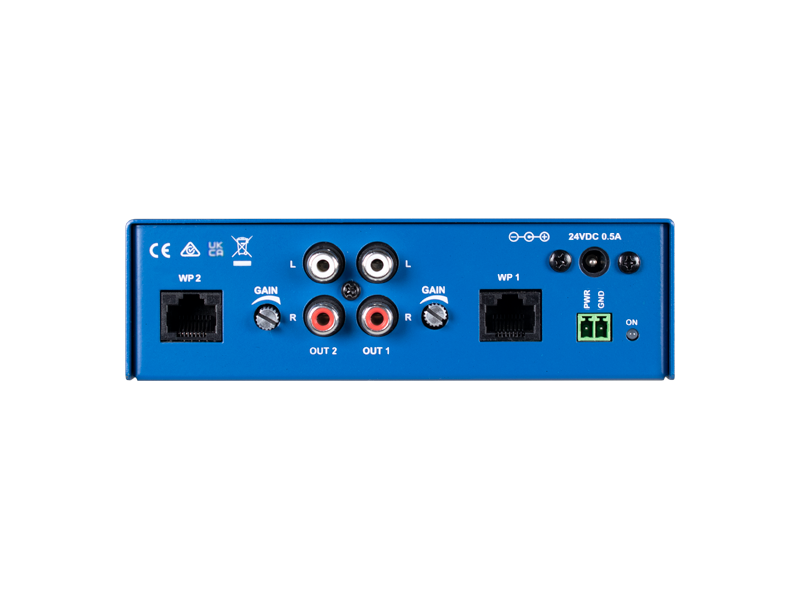

• Rear panel gain adjustment
• Supports up to two wall panels
• Power output to daisy chain up to 15 WP-BREAKOUT units from one power supply
-
Function Wall Panel Power and Audio Breakout Features Level control Input RJ45 Output RCA PSU Input Voltage 100-240Vac 50-60Hz Product Input Voltage 15VDC Colour Blue Warranty 5 years Product Dimensions
(W x D x H)144mm x 124mm x 47mm Shipping Dimensions
(W x D x H)246mm x 126mm x 62mm Net Weight Shipping Weight 0.7 Kg GTIN EAN 9323383020498 -
-
The maximum cable distance supported is 500 metres.
