ZRM4

Zone routing mixer
4 mono zone output

The ZRM4 is a simple to use, yet highly featured 1RU zone routing mixer.

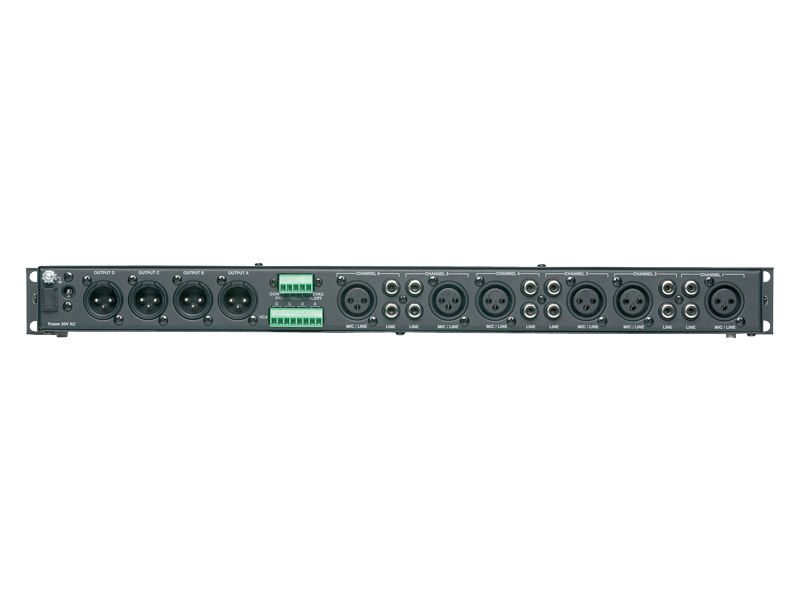

Featuring 6 inputs that can be balanced XLR mic or dual RCA/balanced XLR line level, all available to any combination of 4 zone outputs, the ZRM4 makes signal routing in multizone applications easy.

Quantity must be 1 or more

  • • 6 balanced dual mic/line input
    • 4 mono outputs/zones
    • 6 dual mic/line inputs with sensitivity control
    • In built bell, alert, evac and pre announce chimes
    • Individual remote master VCA control for all four outputs/zones
    • Inbuilt priority/ducking circuit switchable per output

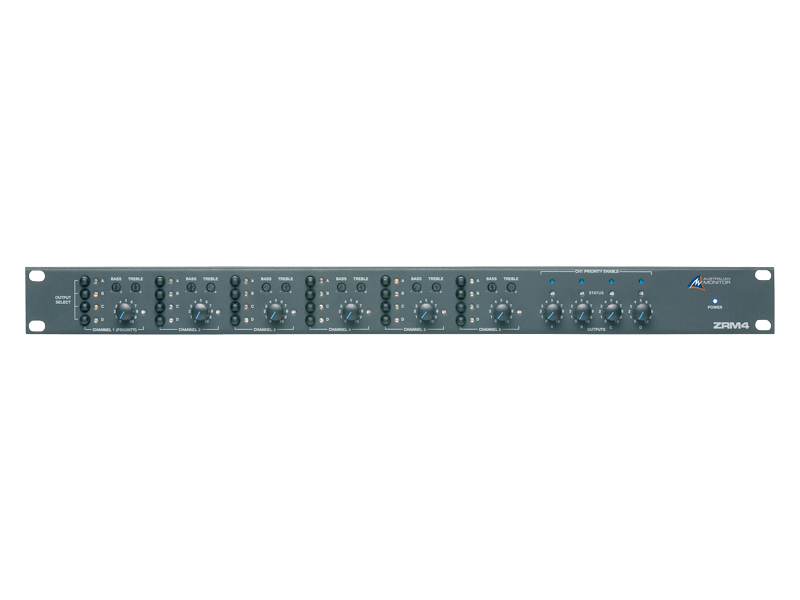

    • Clear indication of zone selection from front panel LEDs

  • Zones 4 Mono Paging Stations Connected 0
    Program Inputs 6 MIC or Line Paging Station P/N N/A
    Local Inputs No Remote Source Control No
    Tones Yes Mounting 1RU
    Input Voltage 100-240Vac 50-60Hz Warranty 5 years
    Product Dimensions
    (W x D x H)    		 482mm x 188mm x 44mm Shipping Dimensions
    (W x D x H)
    Net Weight 2.9 Kg Shipping Weight 5.0 Kg
    GTIN EAN 9323383019324
  • ​ RC2-LOG - Discontinued
     Remote Volume Control
    Wall mount, Clipsal 2000 type

  • ZRM4 Brochure

    ZRM4 Manual
