WPBT-W

Bluetooth® Audio Receiver
White

The WPBT is a programmable Bluetooth® audio receiver and auxiliary input wall panel. Featuring Bluetooth pairing and media controls as well as a source selector.

Audio can be configured to output either stereo or mono balanced audio which can be integrated into any audio system.

The WPBT can be programmed via a USB-C connector and Bluetooth PC Control Software. The software allows the customisation of broadcast name, PIN number, security features and output mode.

An optional WP-BREAKOUT box can provide power to the WPBT and convert the audio to unbalanced audio.

Quantity must be 1 or more

  • • Bluetooth® v5.1 Audio Receiver
    • Auxiliary 3.5mm Input Socket
    • Programmable name, PIN and security features via Bluetooth PC Control Software
    • USB-C programming connector
    • Dedicated Bluetooth® media controls
    • Stereo or mono balanced audio output

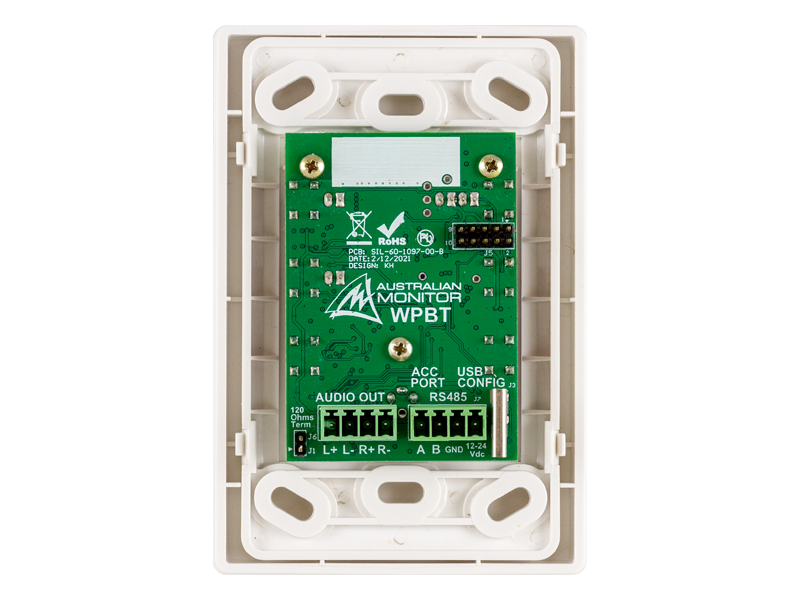

    • Euroblock cable termination
    • Customisable colour scheme using HPM® VIVO™ cover plates
    • Also available in Black, WPBT-B

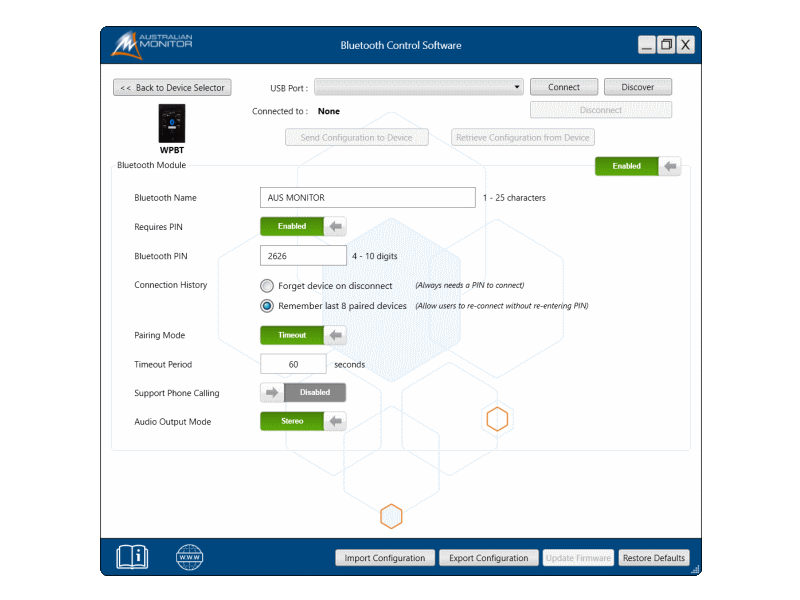

    BLUETOOTH CONTROL SOFTWARE

    The WPBT can be optionally programmed via the free Bluetooth PC Control Software. The following settings can be modified,

    • Bluetooth broadcast name
    • Bluetooth PIN
    • Security features
    • Allow phone call support
    • Audio output mode

    WP-BREAKOUT ACCESSORY

    Pair the WPBT with the optional WP-BREAKOUT to easily provide power and break out the audio from up to two wall panels.

    15V is provided to the WPBT wall panels and the balanced audio is converted into unbalanced audio for connection into any audio system.

    Multiple WP-BREAKOUT units can be daisy chained from one power supply for a minimal installation footprint.

    CUSTOMISE THE LOOK WITH HPM® VIVO™ COVER PLATES

    The WPBT is compatible with HPM® VIVO™ cover plates allowing up to 13 additional colour options to be created.

    Simply replace the included cover plate with the alternative colour desired for a unique colour solution.


  • Output Channels Stereo or Mono Frequency Response N/A
    Audio Formats Balanced Audio THD+N < 0.1%
    Input Voltage 15-24Vdc Signal to Noise Ratio > 80dBA
    Mounting Wall FM Frequencies N/A
    Warranty 5 years DAB+ Frequencies N/A
    Product Dimensions
    (W x D x H)    		 121mm x 82mm x 33mm Shipping Dimensions
    (W x D x H)    		 156mm x 132mm x 101mm
    Net Weight 85 grams Shipping Weight 0.2 Kg
    GTIN EAN 9323383020474
  • ​ WPBT-B
     Bluetooth® Audio Receiver
    Black
    ​ WP-BREAKOUT
     Wall Panel Breakout
    Power and Audio
    ​ ZONEMIX4
     Zone Mixer and Paging system
    4 mono or stereo zone outputs
    ​ ZONEMIX8
     Zone Mixer and Paging system
    8 mono zone outputs

  • WPBT Brochure

    WPBT Manual

    ZONEMIX Overview

    ZONEMIX Brochure

    Bluetooth Control Software

    Wall Panel Mounting Hardware Guide


  • 200 metres direct line of site. Walls and obstacles will reduce this distance.
